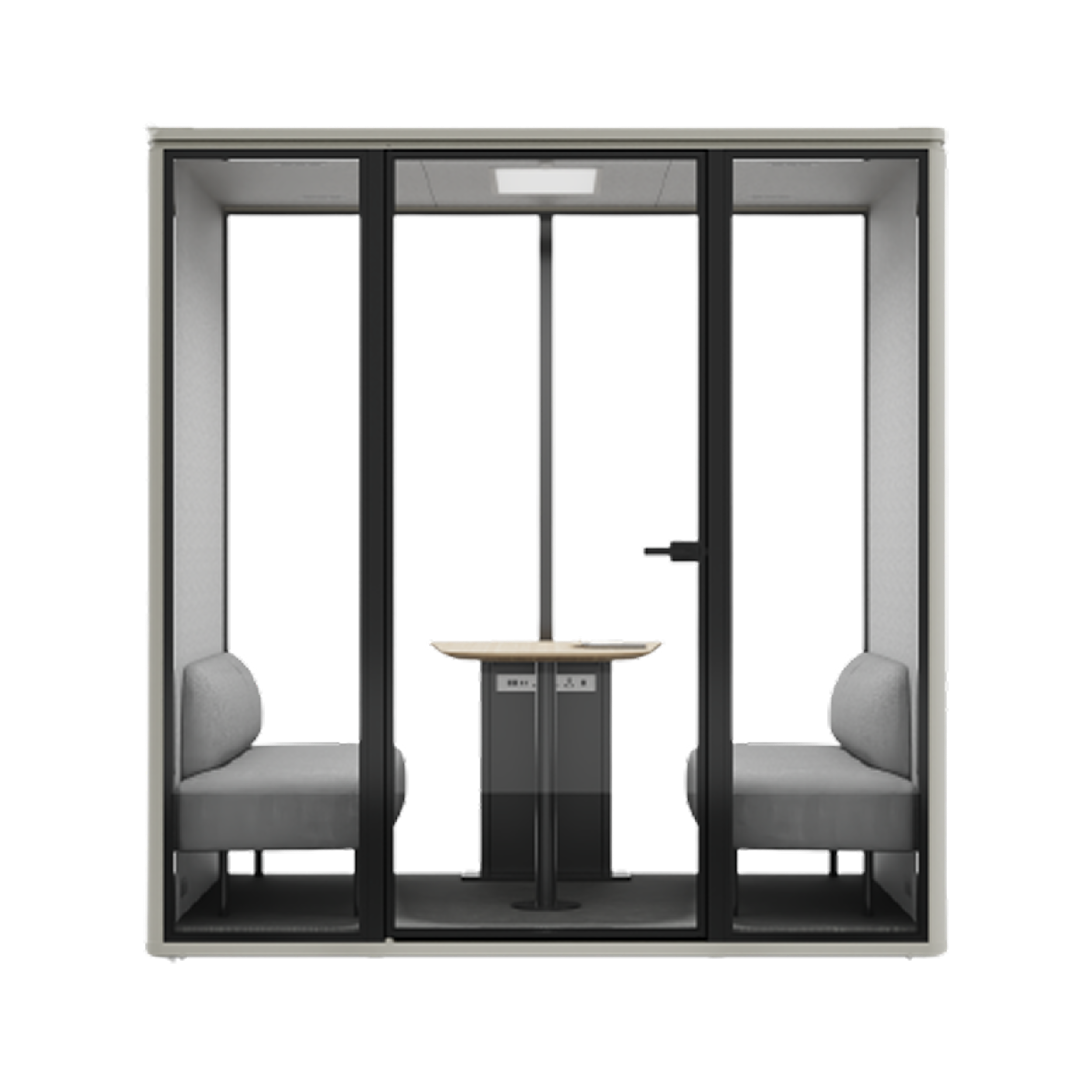

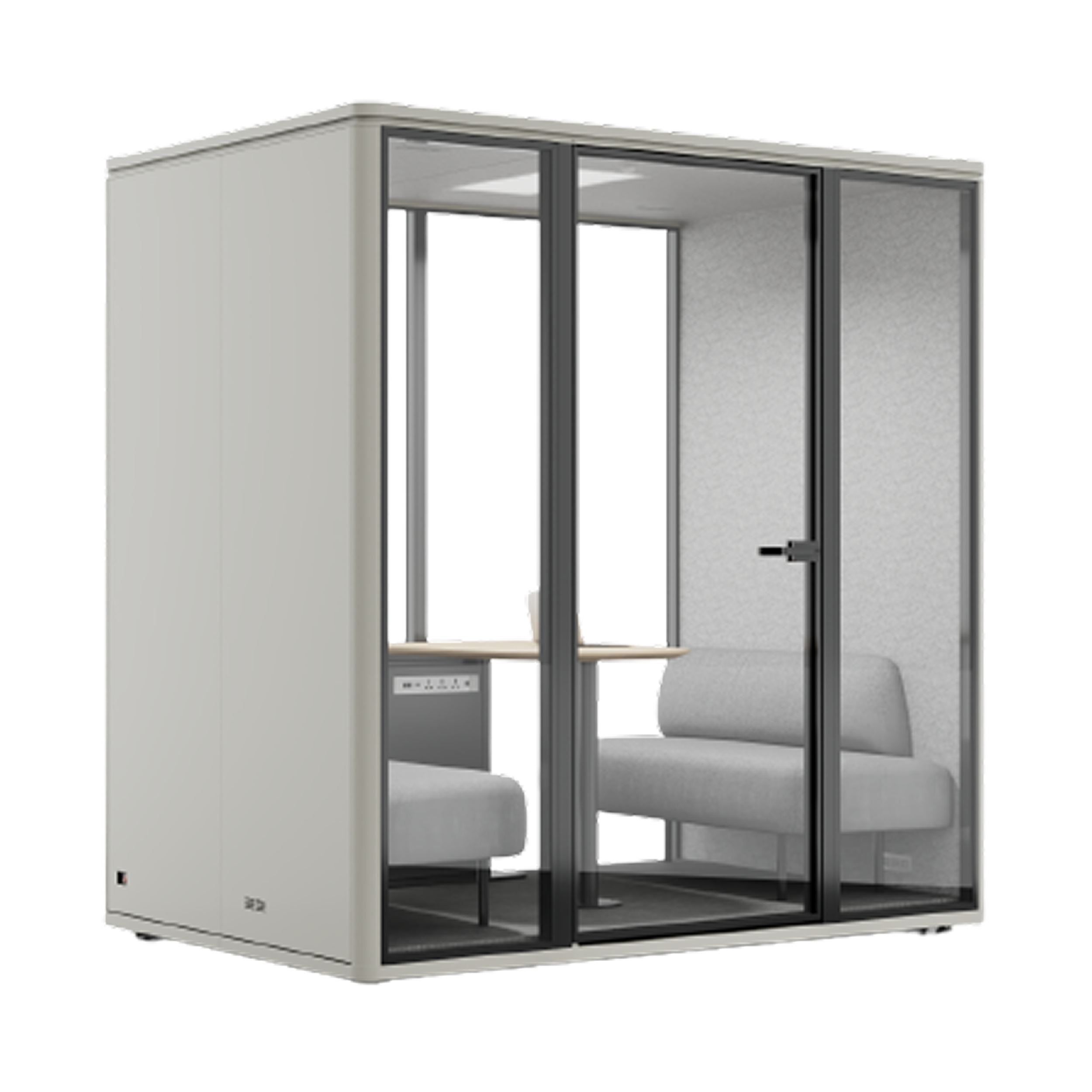

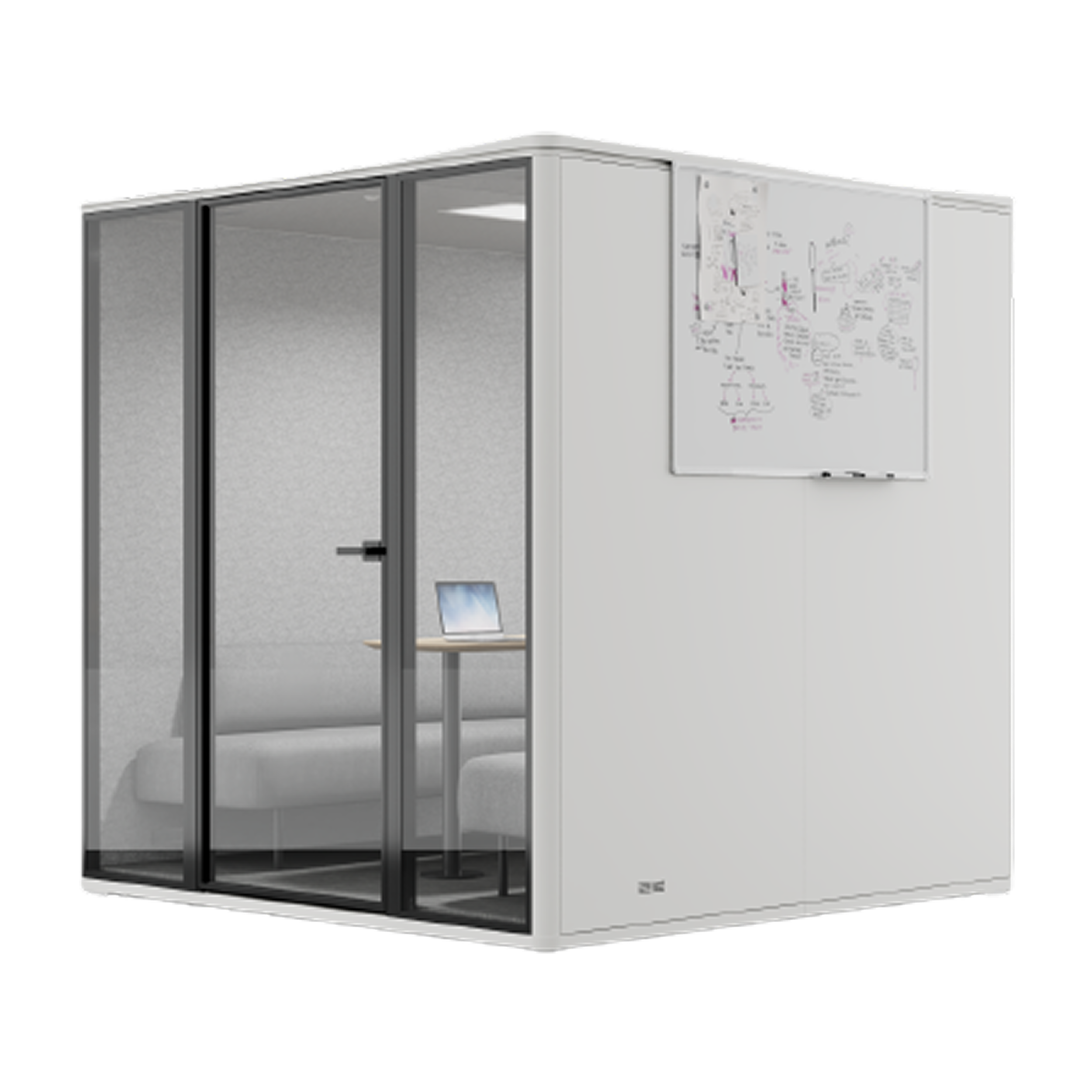

UPod M
A compact, high-performance pod designed for focused work in any environment. Built with durable materials and acoustic engineering for privacy and comfort.
Finishes & Dimensions
- External dimensions (mm): W2200 × D1600 × H2300
- Inside size (mm): W2040 × D1500 × H2120
- External steel plate: 0.8mm thick steel plate, electrostatic powder coating (with automotive vibration damping plate)
- Intermediate material: steel frame + 40mm sound-absorbing cotton + 9mm PET acoustic panel (density: 2.0kg/m³, ~30dB noise reduction)
- Internal finish: Original silk flame-retardant PET acoustic panel (standard), or optional fabric finish wrapped over PET (soundproof structure)
- Floor: 25mm thick board with carpet, adjustable legs (×8), casters (×8)
- Rear glass: 10mm tempered soundproof glass with black aluminum alloy frame
- Glass door: 4+6mm tempered laminated soundproof glass with black aluminum alloy frame
Power & Accessories
- Voltage: 110–240V (CN/US/UK/EU/Universal)
- Socket: switch panel ×1, power socket ×2, Type-A ×1, Type-C ×1
- Ventilation: 4 fans with linked sensor, 120m³/h air volume
- Lighting: LED light with motion sensor, optional status light, 4000K color temperature
- Power cord: 3m with 13A plug
- Door hardware: stainless steel locks, handles, hinges, limiters
UPOD Overview

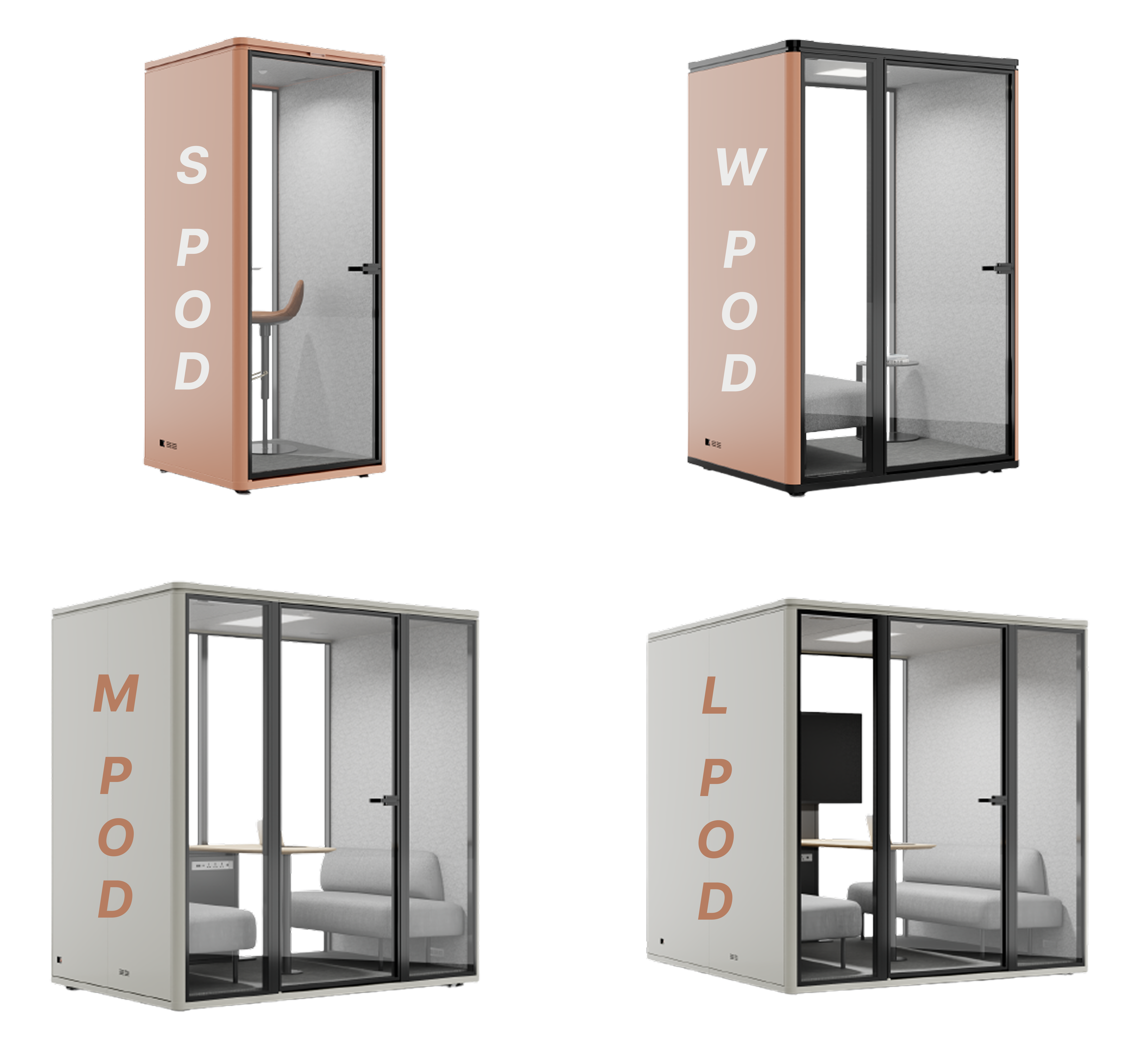

High-performance acoustic materials (up to 31dB noise reduction) and eco-friendly finishes. Available in four sizes (S/W/M/L) to fit any space.
Degree of Concentration

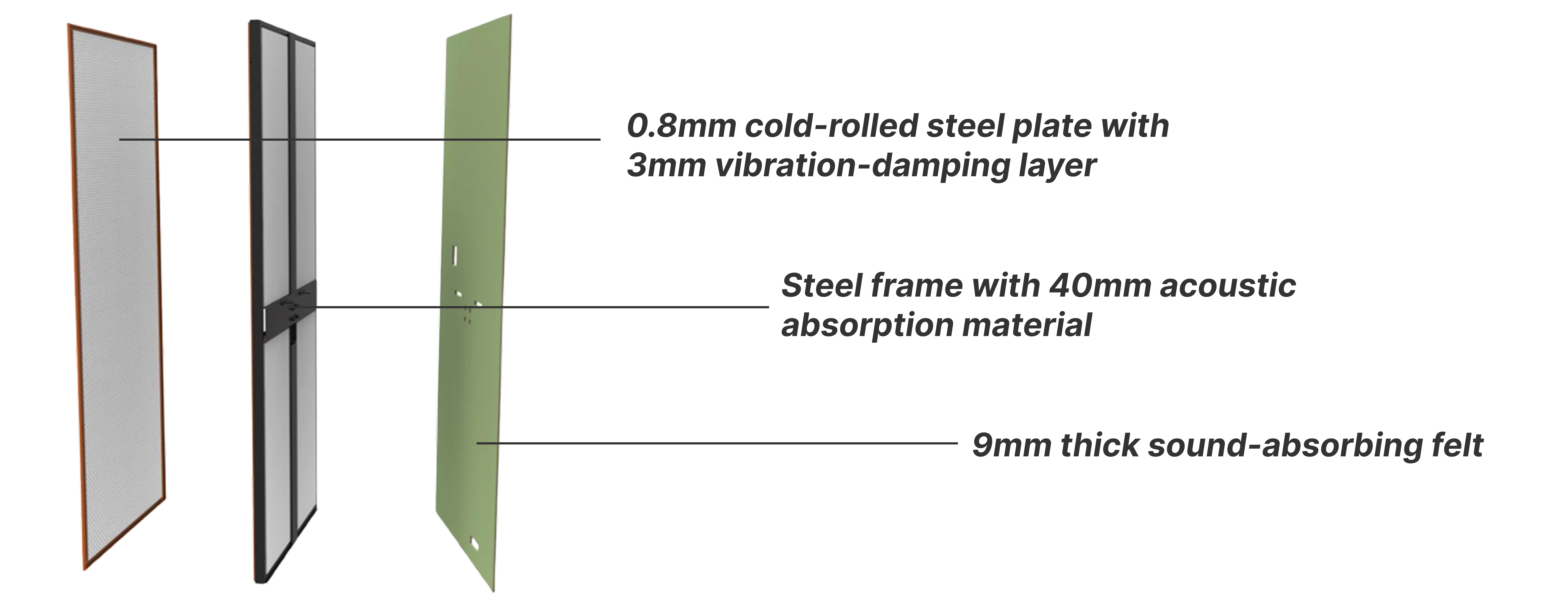

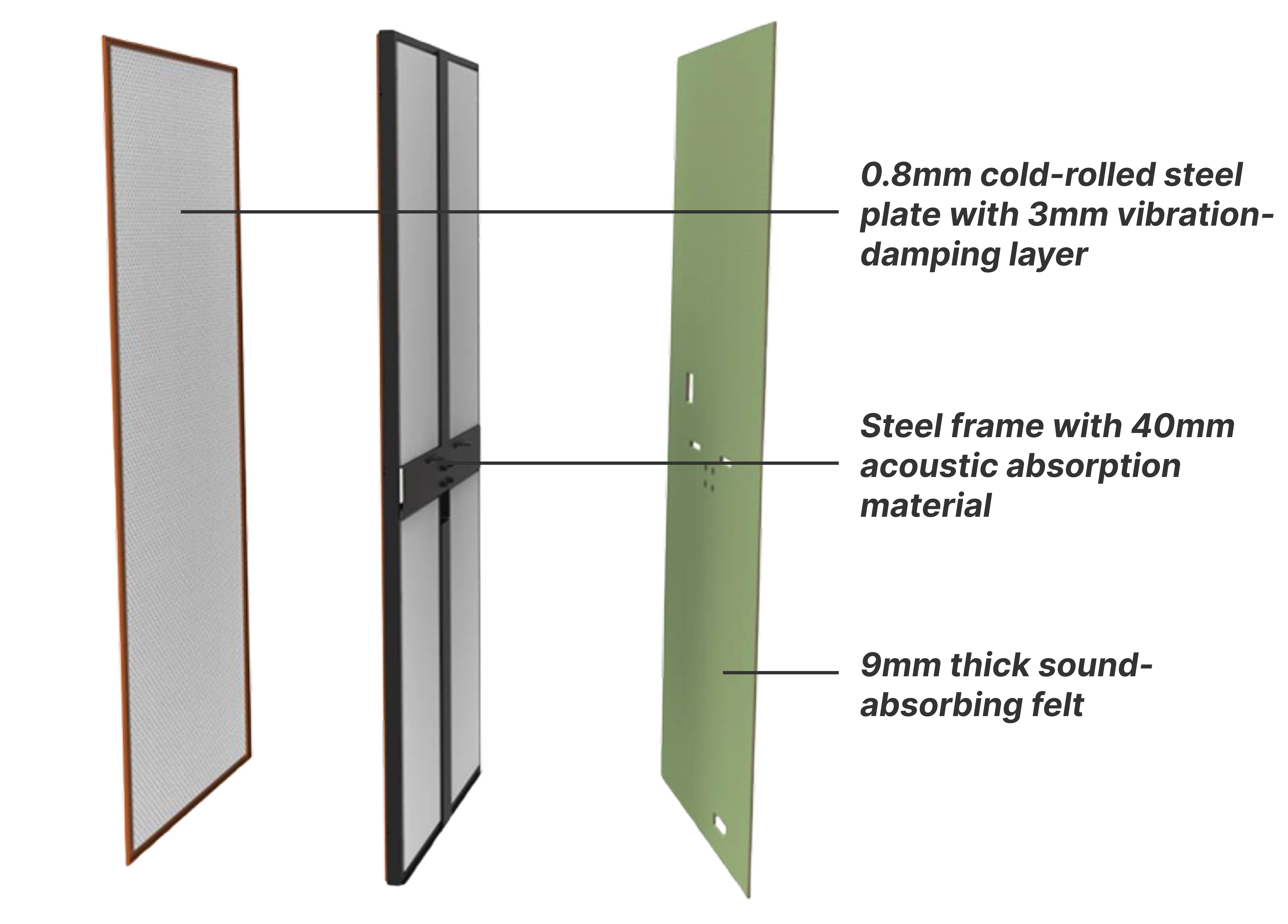

Theater-grade acoustic engineering blocks distractions and boosts focus. Multi-layer construction with steel, damping sheets, acoustic cotton, and laminated glass achieves Class A acoustic performance (~31dB reduction).

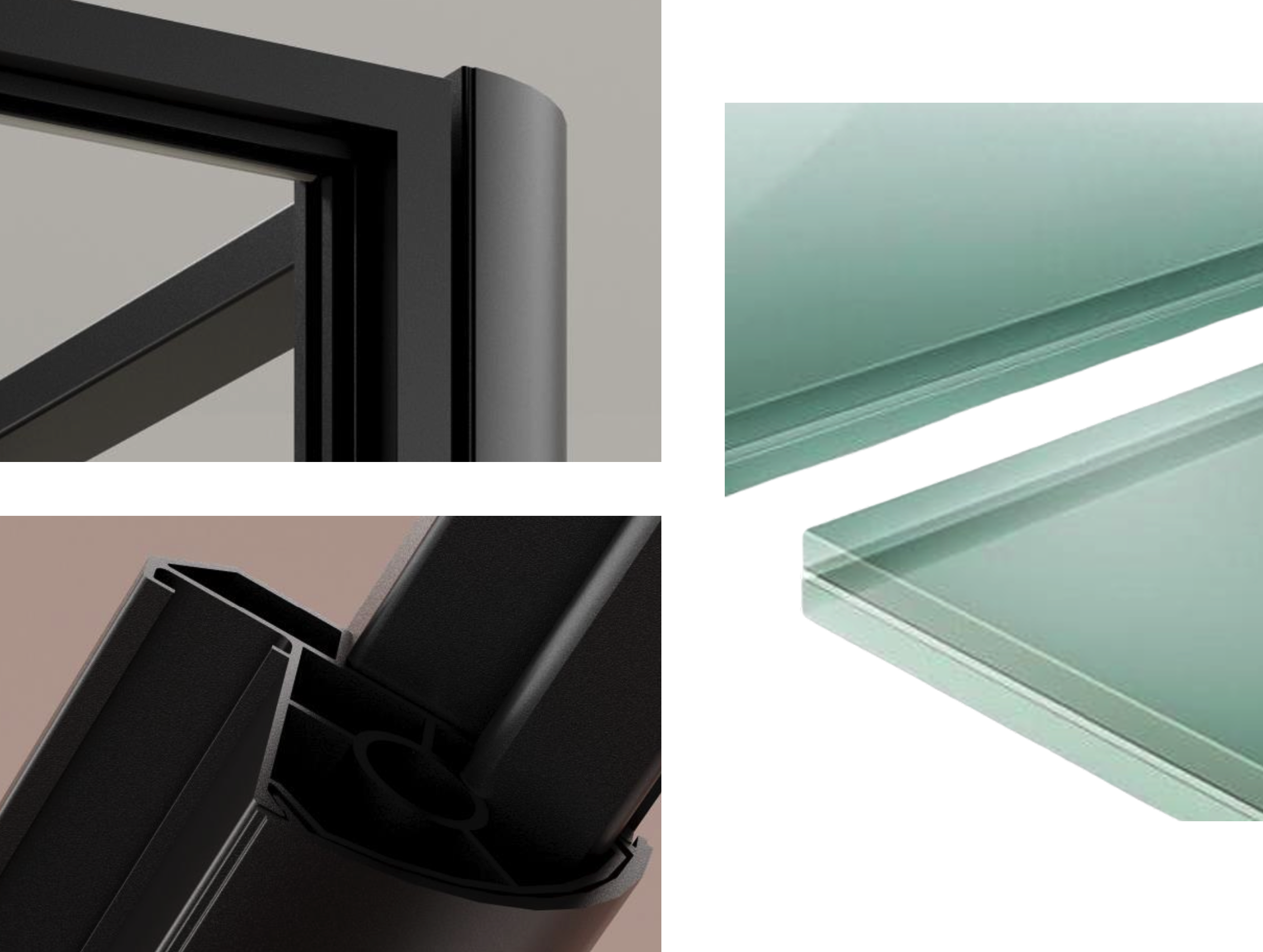

Safety

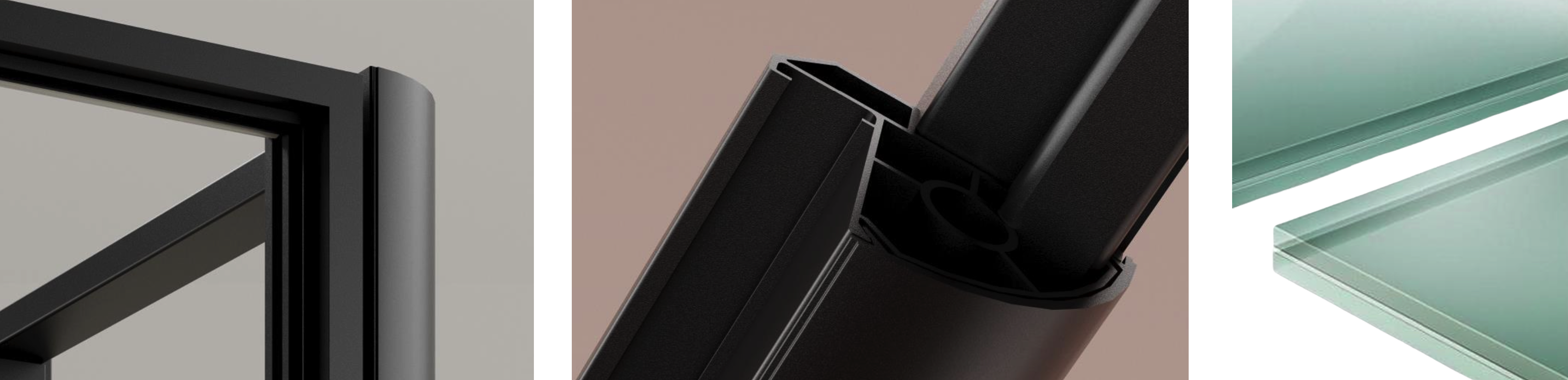

Durable aluminum alloy frame with powder-coated finish. ENF-grade certified panels ensure low emissions. Laminated tempered glass provides acoustic and safety performance.

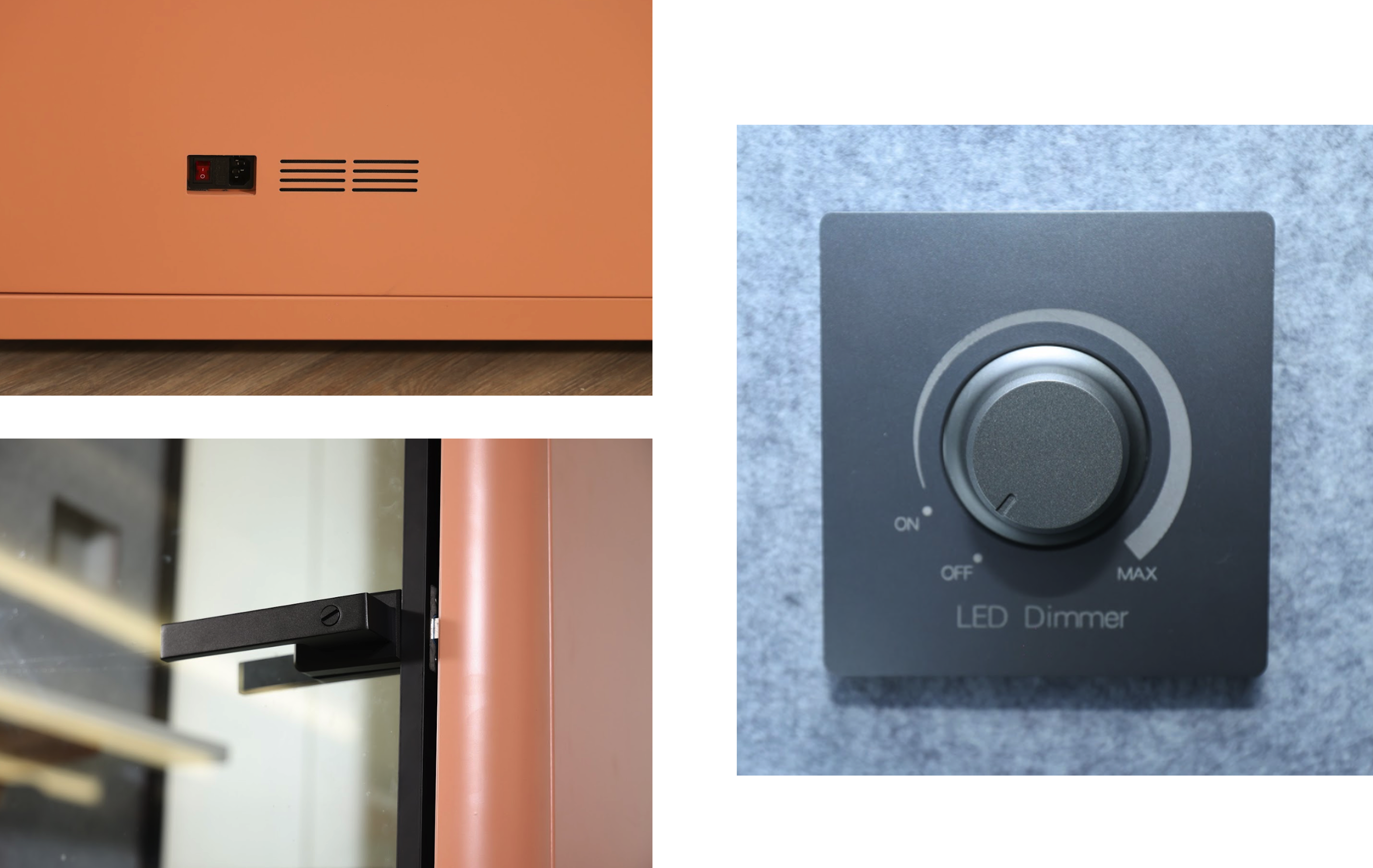

Privacy

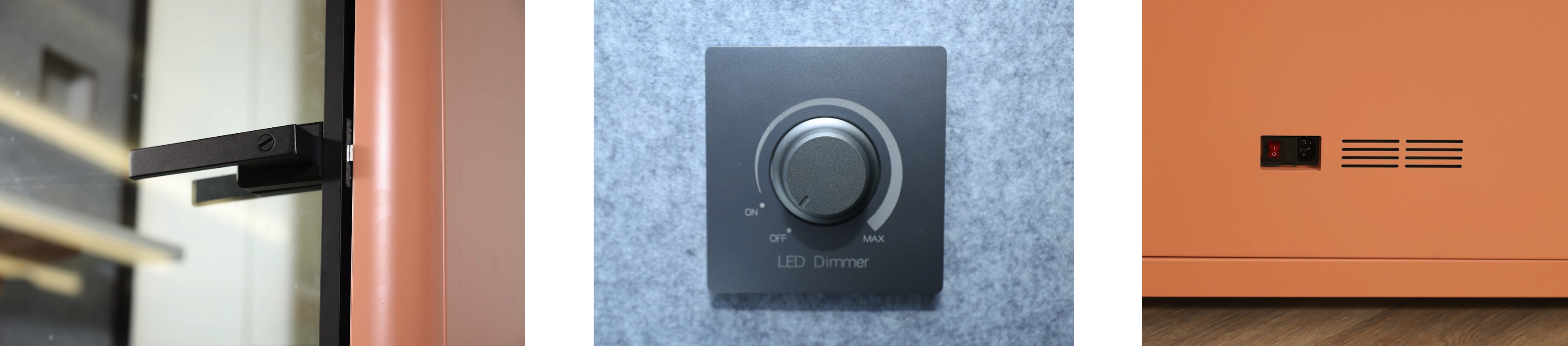

Secure, quiet space for confidential work. Smart environmental control manages lighting and ventilation automatically to save energy and maintain comfort.
Convenience

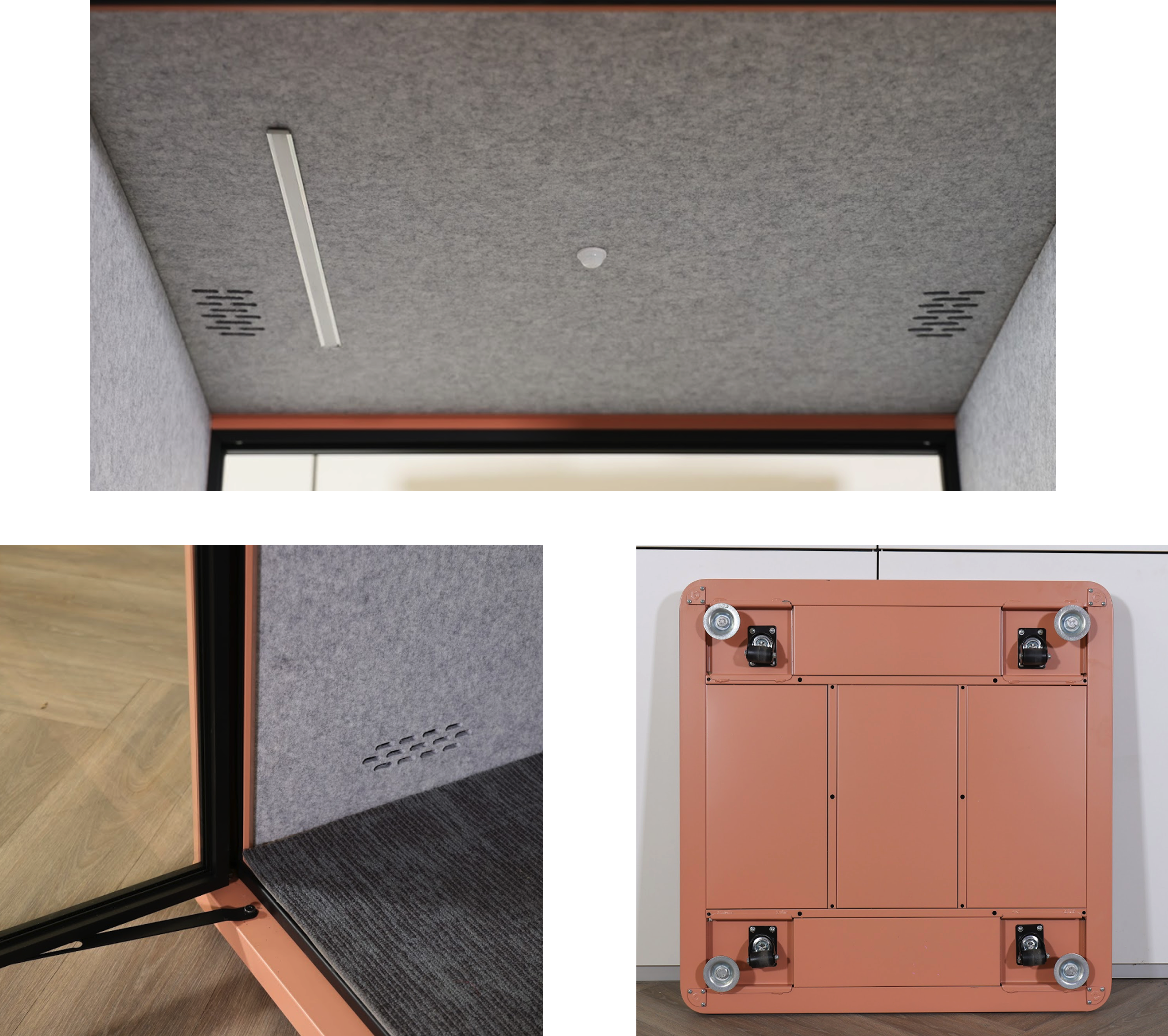

Equipped with mobility casters, ergonomic workspace design, dual-airflow ventilation, dimmable lighting, and universal power sockets with USB/Type-C charging.
